Cast Iron Lapping Plates
Cast Iron Lapping Plates

Cast Iron Lapping Plates

Standard Size and accuracy of Luthra Cast Iron Lapping Plates as per IS : 2285:2003, Grade 1

Price

Round / Square mm Accuracy um Sizes mm Accuracy um Price
100 5 300 x 450 9 Rs1,550.00
200 5 450 x 600 10 Rs2,450.00
250 7 600 x 900 12 Rs2,800.00
300 7.5 1000 x 1000 14 Rs4,550.00
400 9 Rs5,950.00
450 9 Rs7,750.00
Add to Wishlist
Categories:

Description

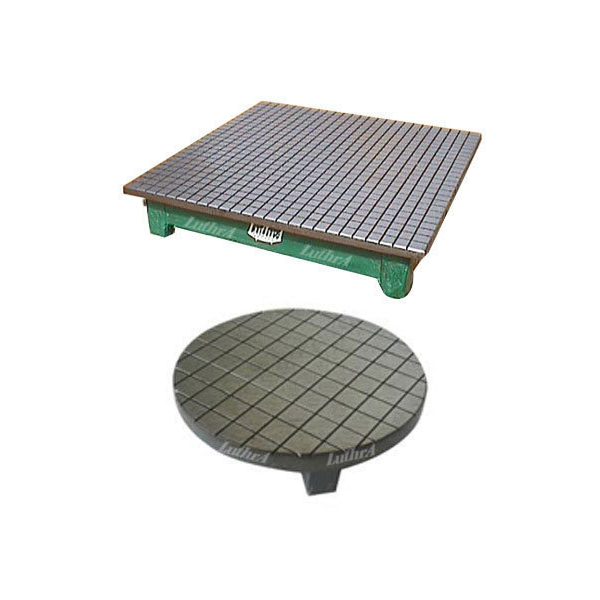

We provide our clients with qualitative cast iron lapping plates that are used for accurate hand lapping of various materials like nylon, plastics, ceramics and other non ferrous material. These cast iron lapping plates are available in round and rectangular sizes and have 3 mm wide and 3 mm deep serrations on working surface equally spaced at 25 mm.

Our iron lapping plates are manufactured using closed grain graded casting as per IS 210:1993 confirming to Grade FG- 220. Cast iron lapping plates are supplied with calibration certificate traceable to National Physical   Laboratory   (NPL, Govt of India) New Delhi. We offer our range of lapping plates for various lapping machine of different sizes as per the specification of our clients.
