Cast Iron Straight Edges

L * W * T Straightness Price
300×50×8 0.004 Rs2,850.00
600×50×12 0.010 Rs4,400.00
1000×50×12 0.015 Rs9,300.00
1000×65×14 0.020 Rs13,250.00
2500×55×15 0.025 Rs22,250.00
3000×55×16 0.030 Rs32,150.00

Description

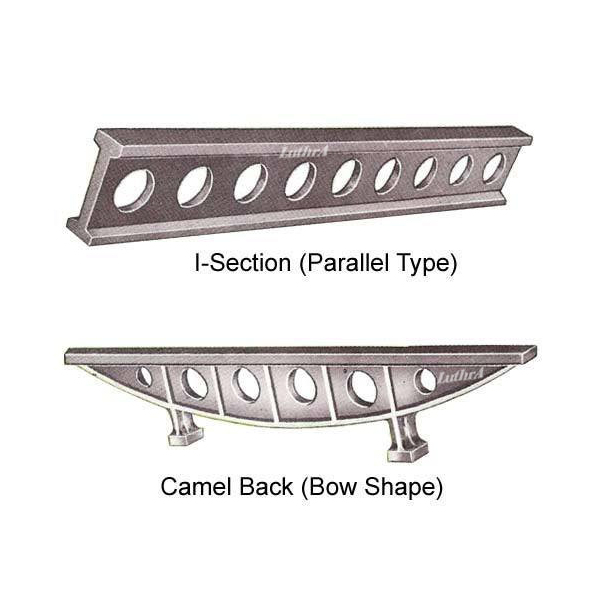

We are one of the well-known manufacturers of cast iron straight edges that are widely used for erection, commissioning and leveling purpose. I- section straight edges is used to check the surface flatness of large precision area such as surface tables and machine tables etc. Cast iron straight edges are also used for blue matching during hand scrapping operations .I-section straight edges have wide and parallel working surface for application of spirit level.

Luthra I –Section straight Edge are made as per IS 5268:1991 Grade-1.

Luthra cast iron I-Section Straight Edges are made of good quality closed grain cast iron strictly as per IS 210:1993 confirming to Grade FG-220.

  • Castings are stress relieved either by natural aging or by artificial seasoning
  • Hardness 170-220 BHN
  • Hand scrapped for surface finish of Grade-1 accuracy.
  • Wooden covers are provided with each straight edge to protect working surfaces.
  • Safe storage wooden box can also be provided on request at extra cost.
  • Actual dimensions of Straight Edges may be more or less than those mentioned in the table below therefore the sizes and dimensions of straight edges of the same length may vary.
  • Only match pair Straight edges will have the same dimensions (i.e. overall depth). The flatness and parallelism will be within specified limits of the standard and those can be used as Matched pairs.
  • I- Section  Straight  Edges are supplied with computerized calibration certificate traceable to National Physical   Laboratory   (NPL, Govt Of India ) New Delhi.
