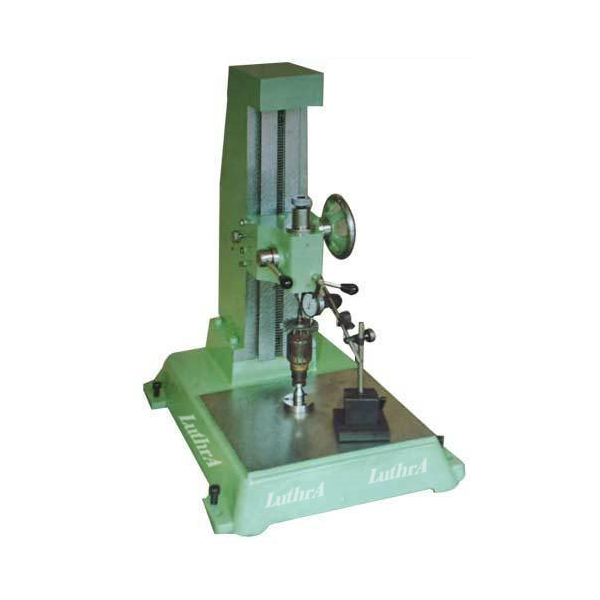

Vertical Bench Centre

Standard size and accuracy of Luthra Vertical Bench Centre as per Grade 1

Size mm Centre distance mm Centre Height mm Accuracy in Microns um Price
150 x 75 150 75 10 Rs5,950.00


Luthra vertical bench centre is ideal, accurate and quick method for inspecting radial run out of camshafts, crankshafts, cylindrical shafts. Gear teeth run out can also be inspected by using mandrel, arbour or directly to the centre. Luthra vertical bench centre is ideally suited in machine shops , tool rooms and standard rooms for checking various other parameters like  concentrically and true rotation of components in vertical position.

Some of the silent features of Vertical bench Centre are:

  • Base of bench centre is made of close grained castings and finished to high degree of accuracy by hand scrapping.
  • The base of bench centre , column and its head are artificially stress relieved as precaution against distortion.
  • One of the centre  is spring loaded to ensure uniform pressure while holding work piece and unloading without disturbing the accuracy of centres.
  • Centres are made from high carbon steel hardened and ground finish having more taper (MT-3) and are replaceable.
  • One head is adjustable to the required  positions for easy and quick setting of the required  distance between the centres and other centre is fix  mounted on base.
  • The heavy duty dove tailed column is provided  with  rack and pinion arrangement along with counter weight for smooth movement of spring loaded head.
