In manufacturing and precision engineering, dimensional accuracy is a non-negotiable aspect. A small variation in the thread or diameter tolerance can cause a failure in the assembly, leakage, or vibration problems, or mechanical failure. It is here that Thread and Plain Plug and Ring Gauges are absolutely essential.
As a reliable Industrial Gauge Supplier, knowledge on these inspection tools is important to manufacturers in order to remain in line with international standards, even as they are assured of product reliability.
This general guide identifies the types, operating principles, standards, materials and uses of Thread Plug Gauge, Thread Ring Gauge and other precision gauges such as ACME Thread Gauges and Go/No-Go Gauges.

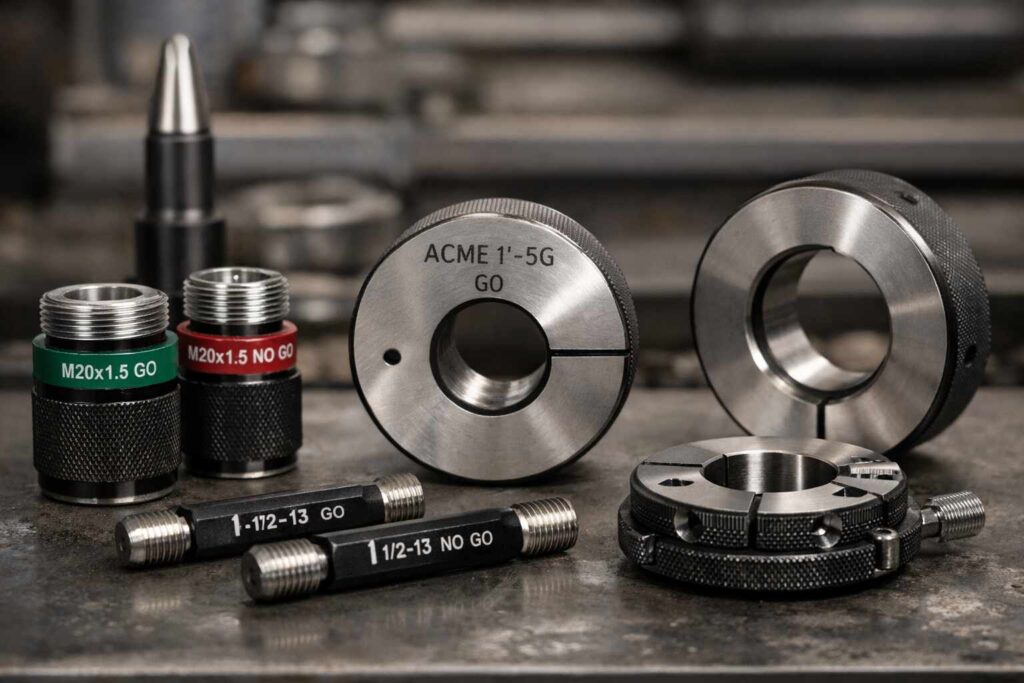

Thread and plain plug & ring gauges are precise inspection tools that are used to determine whether the internal or external diameter of a component is within tolerance limits.
They are not such measurement tools as calipers or micrometers. They are instead limit gauges, intended to give a pass/fail (Go/No-Go) indication with reference to a set of tolerances.
Main Categories
- Thread Plug Gauges -To check internal threads
- Thread Ring Gauges - To check outside threads
- Plain Plug Gauges - To check plain holes
- Plain Ring Gauges - Used to measure shaft diameters
- These devices make sure that components are of the right size before assembly.
Understanding Go/No-Go Gauges
The majority of plug and ring gauges work based on Go/No-Go principle.
Go Side:
- Should either pass through or over the part.
- Checks material minimum condition.
No-Go Side:
- Must NOT pass.
- Checks on ensuring maximum material condition is not surpassed.
- This type of system provides quality control without the need to have complex interpretation of measurements.
Due to such simplicity and reliability, Go/No-Go Gauges are common in automotive, aerospace, oil and gas and heavy engineering sectors.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Types of Thread Plug Gauges
There are several types of Thread Plug Gauge Supplier, depending on thread form and standards.
Applied in both metric and unified threads.
Specifically designed to fit ACME thread profiles in:
- Lead screws
- Power transmission systems
- CNC machinery
Being an old acme gauge supplier, offering high precision acme thread gauges would be a guarantee that it can fit the trapezoidal thread forms.
Used in pipe threads such as BSPT and NPT.
Types of Thread Ring Gauges
A Thread Ring Gauge Supplier is one of the suppliers of gauges that are used to check external threads of bolts, studs, and shafts.
Allow recalibration and wear compensation.
Very stable and robust to fixed tolerance examination.
Applied in tapered pipe threads.
Thread Ring Gauges are necessary in the process of manufacturing fasteners and threaded components.
Plain Plug & Plain Ring Gauges
When threaded parts are checked by thread gauges, plain gauges check smooth surfaces.
Plain Plug Gauges
- Used to measure hole diameters without threads.
Applications
- Bearing housing inspection
- Engine block manufacturing
- Hydraulic components
Plain Ring Gauges
- Used to check the outer shaft diameters.
Applications
- Automotive axles
- Precision shafts
- Rotating assemblies
Materials on the Industrial Gauges
A professional Industrial Gauge Supplier is one that guarantees good quality materials in terms of durability and accuracy.
Common materials include:
- High Carbon Steel
- Tool Steel
- Tungsten Carbide (against wear)
- Hardened Alloy Steel
Gauges are solidified and stabilized to ensure that they have a dimension stability during extended usage.
Precision and Acceptability Standards
Thread and plain plug and ring gauges are produced in accordance to international standards including:
ISO | DIN | ANSI | BS | IS
The grades of tolerance may include:
6H / 6g | 2B / 2A | Class X / Y / Z (as per ISO)
To ensure compliance in quality sensitive industries proper certification and calibration reports are important.
Applications
Automotive Industry
Aerospace Industry
Oil & Gas Sector
Heavy Engineering
CNC & Tool Rooms
Why Thread and Plug Gauges, over Measuring Tools, are superior to inspection
Plug and ring gauges: Unlike calipers or micrometers, the interpretation of reading is not needed.
- Give immediate pass/fail feedback.
- Reduce human error
- Increase inspection speed
- Enhance efficiency in production.
This is the reason why all serious Gauge Suppliers use plug and ring gauges as part of their product core.
How to choose the correct Thread Plug or Ring Gauge
In buying a Thread Plug Gauge Supplier or Thread Ring Gauge Supplier, consider:
- Type of thread (Metric, BSP, NPT, ACME)
- Tolerance Class
- Material & Hardness
- Calibration Certification
- Surface Finish
- Frequency of Usage
- Customization Requirements
In the case of the use of power transmission screws, be sure that your Acme Gauge Supplier offers gauges that correspond to ACME thread geometry.
The benefits of selecting a Professional Industrial Gauge Supplier
A trustworthy Industrial Gauge Supplier will offer:
- Custom options of manufacture.
- Fast delivery
- Calibration certificates
- Technical consultation
- Competitive pricing
- Bulk order capability
Selecting an appropriate supplier will have direct effects on the quality of production and inspection.
Thread and Plain Plug & Ring Gauges are tools of inspection that are necessary in contemporary manufacturing. In the automotive sector to aerospace sector, these gauges are used to make sure that threaded and cylindrical parts are to precise tolerance requirements.
You need to be sure of a good Thread Plug Gauge Supplier, a fine Thread Ring Gauge Supplier or a good Acme Gauge Supplier, then partnering with a professional Industrial Gauge Supplier will ensure that all will be accurate, durable and of international standards.
FAQS
Thread plug gauges are used to test internal threads and thread ring gauges are used to test external threads.
They are utilized to check profiles of ACME threads that are commonplace in power transmission and lead screws.
It is a gauge of limits that is used to determine whether a part is within tolerance limits through the pass/fail limits.
They assure the dimensional accuracy, lower rejection rates, and production quality.
